DESCRIZIONE

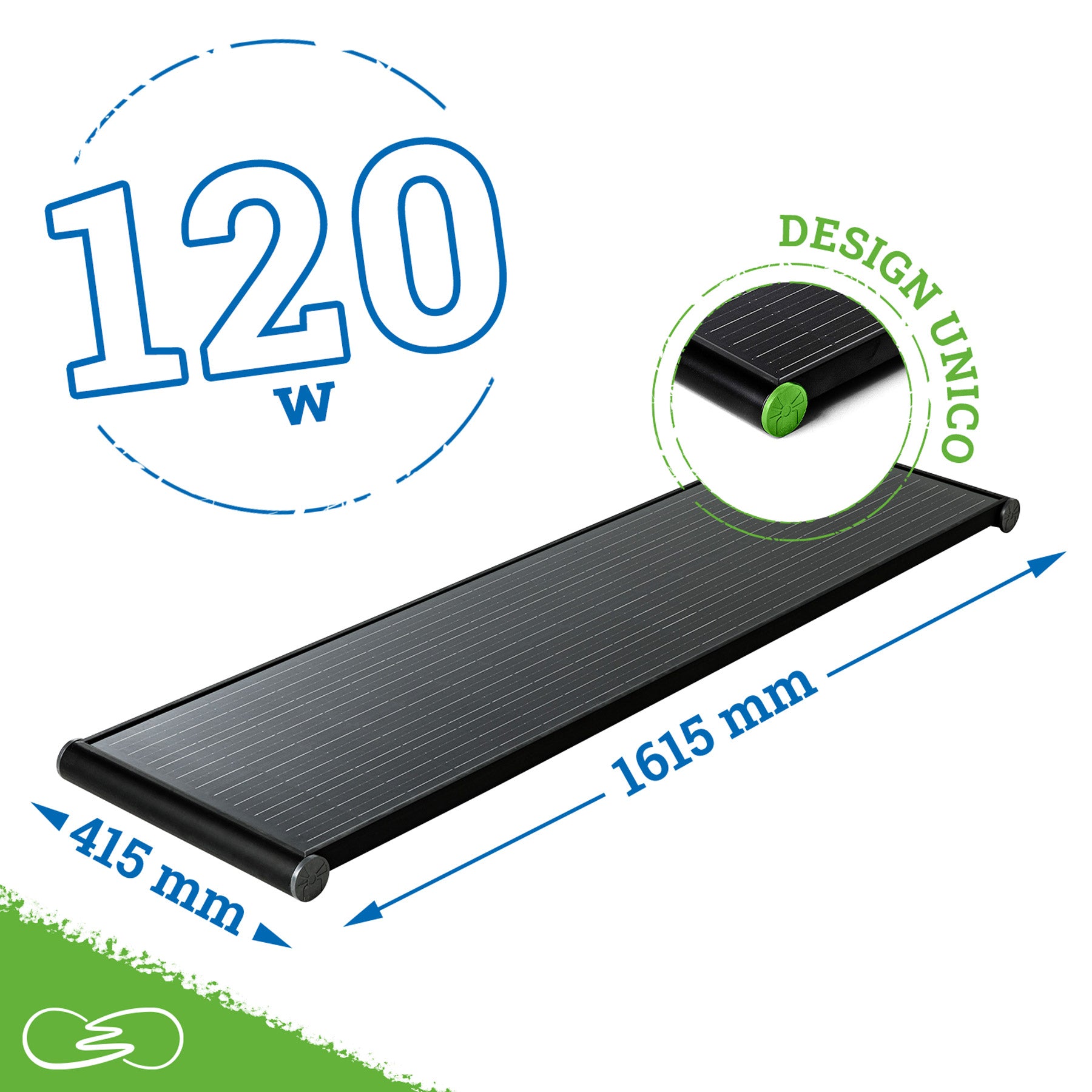

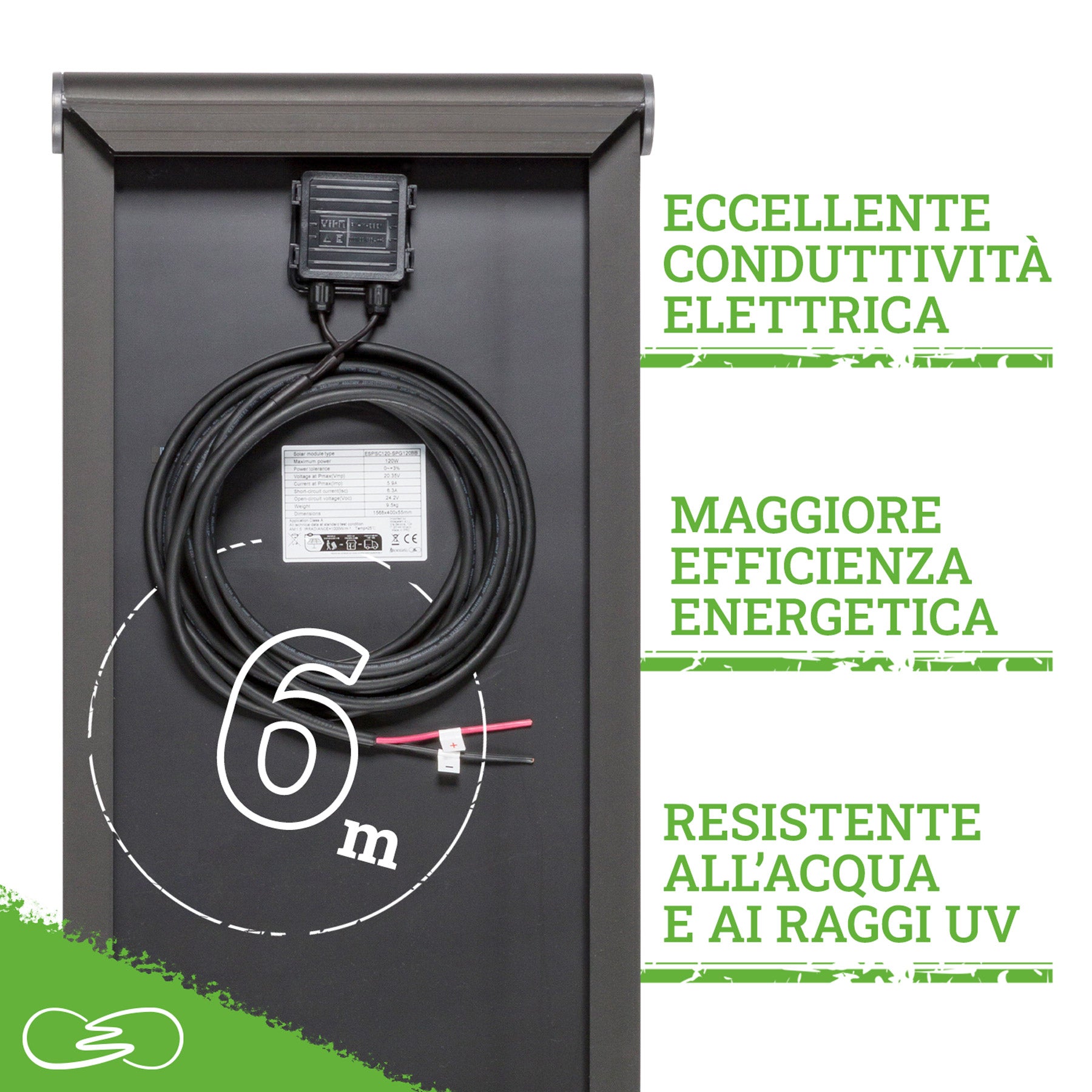

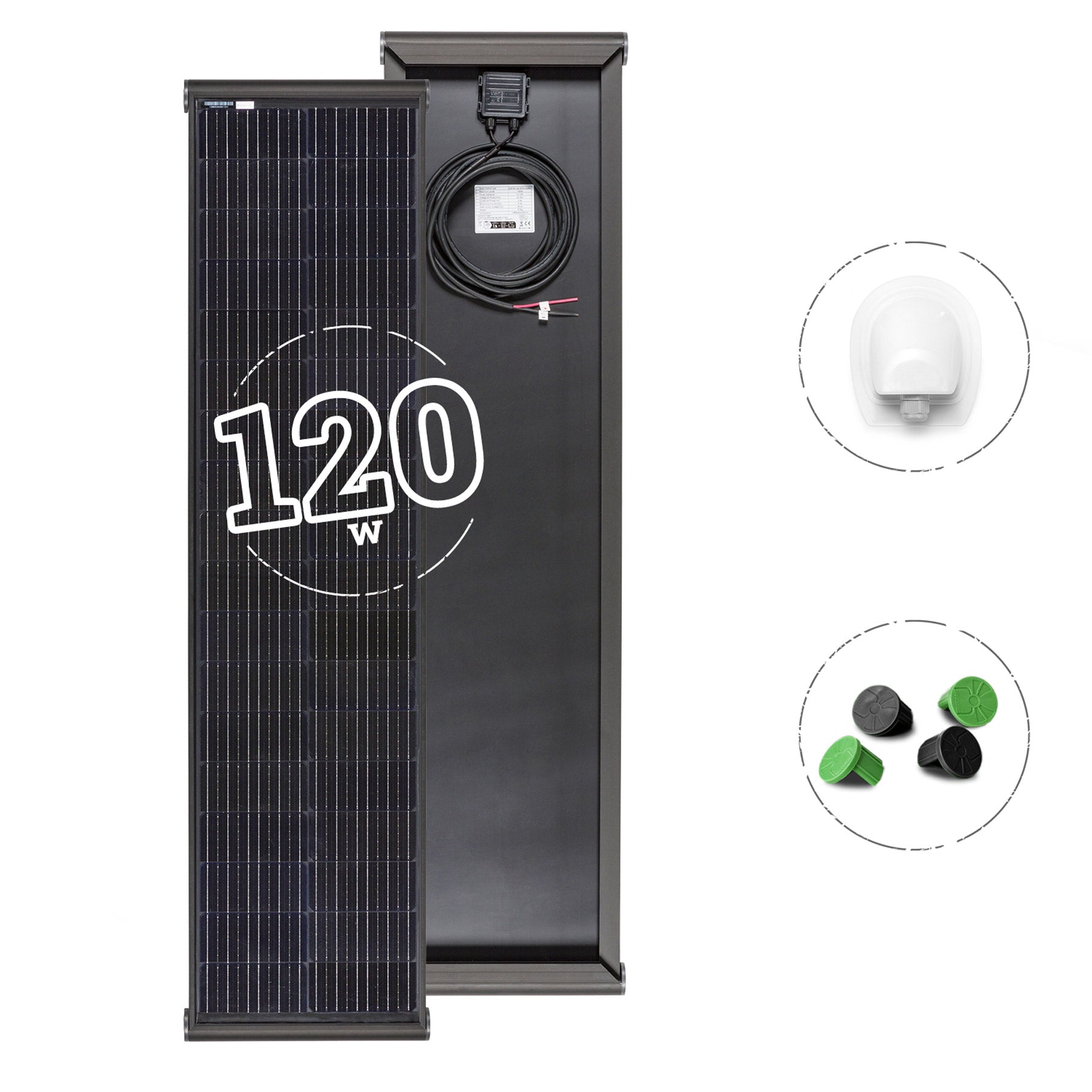

Moscatelli , a company specializing in the design, construction and supply of solar panels , televisions and other products for campers, vans and mini vans, offers a narrow 120W photovoltaic panel for campers with ultra-high efficiency PERC monocrystalline cells , complete with 6-metre cable already connected , ASA anti-UV cable guide and aluminum supports integrated in the frame for convenient fixing to the roof.
The complete kit for motorhomes , light and compact, is easy to assemble and is suitable for satisfying a need for sufficient energy for the daily needs of life on the road.
ASSOCIATED PRODUCTS:
Within our product range , you will also find charge controllers and batteries useful for making the panel work in the best possible way.
You can combine this type of solar panel with the 10A PWM charge regulator, the 12A MPPT regulator and the service batteries.
TECHNICAL DATA:
Weight | 9.5kg |
---|---|
Dimensions | 1568 x 400 x 55mm |
Peak power | 120W |
Short circuit current | 6.33A |
Open circuit voltage | 24.2V |
Maximum current voltage | 5.9A |
Maximum power voltage | 20.35V |
No. of diodes | 2 |
Section and length of the cable | 4mm^2, 6m |
Maximum system voltage | 1000V/DC |
Monocrystalline cells | 83 x 182mm 10BB PERC |
N° cells | 36 (2x18) |
Cell efficiency | 22.5% |
